Introduction of SolaX EVC working mode

Thanks to the communication between the charger and inverter, the system has Green/Eco mode to use full-green/Semi-green energy to charge your vehicle.

In Green mode: The default level is 6A, in which the EV Charger will only start to charge if generating current reaches 6A, and it never take

electricity from the grid. While there is another 3A level start to charge if generating current reaches 3A, capable to purchase other up to 3A from the grid. This work mode will spend all its effort to help clients use renewable energy and reduce the cost of buying electricity from the grid.

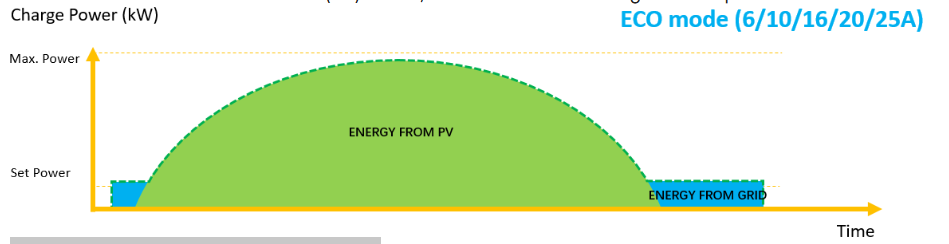

In Eco mode：it helps users to charge at a minimum power rate (set by user). If there is surplus energy form PV, it can exceed the minimum power rate to make full use the energy. If the PV energy is not enough, it will take the electricity from the grid to charge at the minimum power rate. For example, the users set the charging current 16A. If the current from the inverter is only 10A then the rest would be taken from the grid as 6A. If the current from the inverter(PV) is 18A, then the Smart EV Charger will output 18A.

More about SolaX EVC, please refer to this link: https://kb.solaxpower.com/solution/detail/2c9fa4148ceddee5018ea2134ddd2890
